Hnd1000/1500 Drum Type Shot Blasting Machine China Good Price /Small Thin Steel Castings Roller Continuous Blasting Type

תיאור

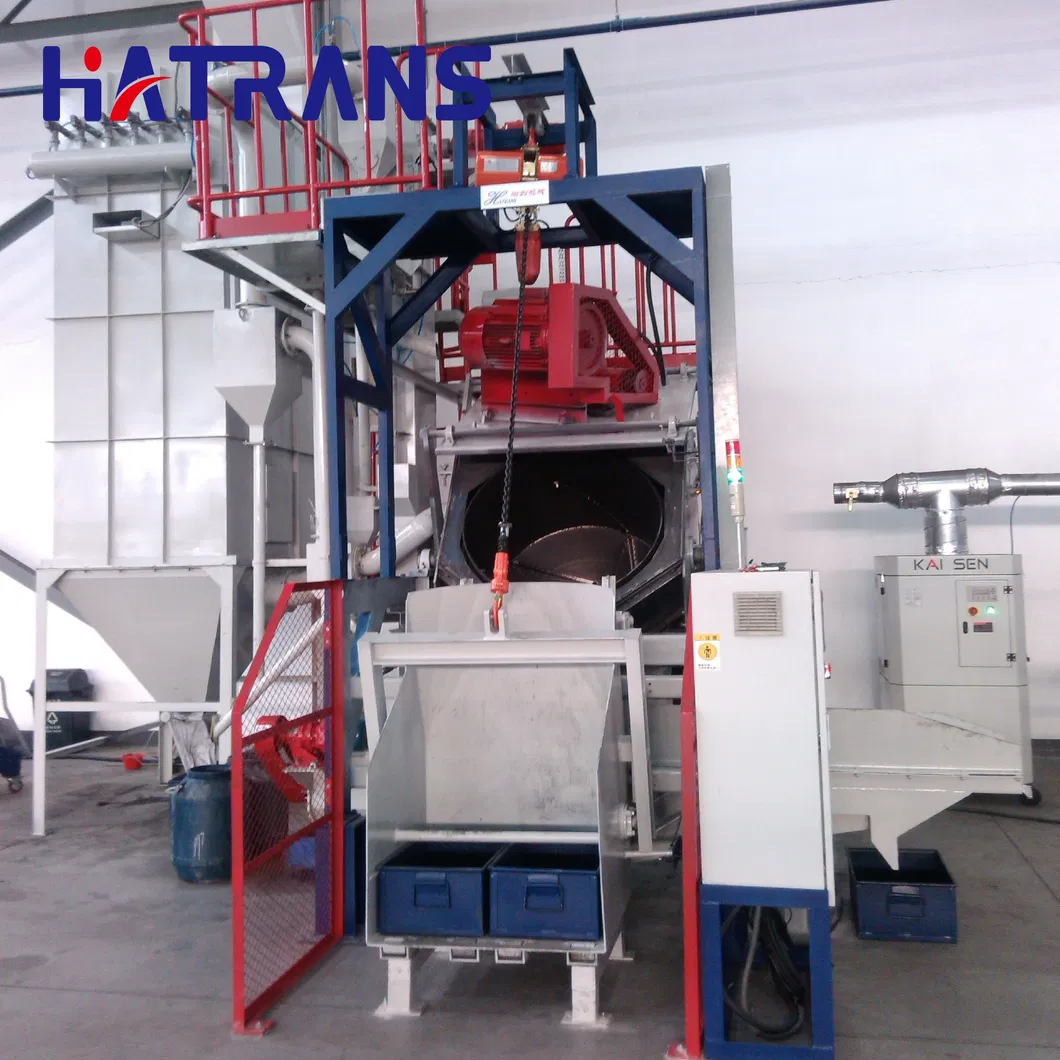

HND series drum shot blasting machine

Efficient uniform cleaning effect

Using a unique drum rocker construction, the drum not only rotates but also shakes up and down, so that the product in the drum is completely stirred, achieving a uniform cleaning effect.

Small thin pieces can also handle special casting

The shot blasting chamber adopts a unique structure that can clean the general casting and forging parts. Even the thin and small special parts can be processed without damage.

Simple and accurate input and discharge

Due to the automatic and smooth movement, the work-pieces will not be bruised and can be gently and completely put in and discharged, making it easy to operate.

Simple maintenance

The structure of the drum and the body is simple, so the consumable parts can be reduced, and the time and cost of maintenance can be saved.

סוּג			HND700	HND1000	HND1500
Handing ability	יְכוֹלֶת (m3)		0.06	0.3	0.6
	טotal weight (ק"ג)		150	600	1200
	Allow the Max weight(ק"ג)		10	35	40
	Allow maximum size (מ"מ)		200	400	550
בlast Wheel	power (קילוואט)		7.5	22	30
	Abrasive flow rate (kg/min)		80	350	450
דust removal	Used to oxidation(m3/min)		30	50	75
	Casting with sand(m3/min)		50	75	100
טotal power (kw)			13.25	≈38	≈47
דimension		Width A (מ"מ)	1745	3425	3815
		לength B (מ"מ)	2320	4850	5470
		Height C (מ"מ)	2790	5350	6350
		Output height D (מ"מ)	700	950	1350

Hnd1000/1500 Drum Type Shot Blasting Machine China Good Price /Small Thin Steel Castings Roller Continuous Blasting Type

PACKAGING & SHIPPING

1.Small spare parts put in plywood wooden cases or steel pallet.
2.Other parts is our company standard or according to customer requirements
3. מִשׁלוֹחַ: Container transport

השירותים שלנו
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. אנחנו יצרן, specializing in producing all kinds of machinery for more than 8 שנים, competitive with good quantity.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
